Ejercicio practico EriBank

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39

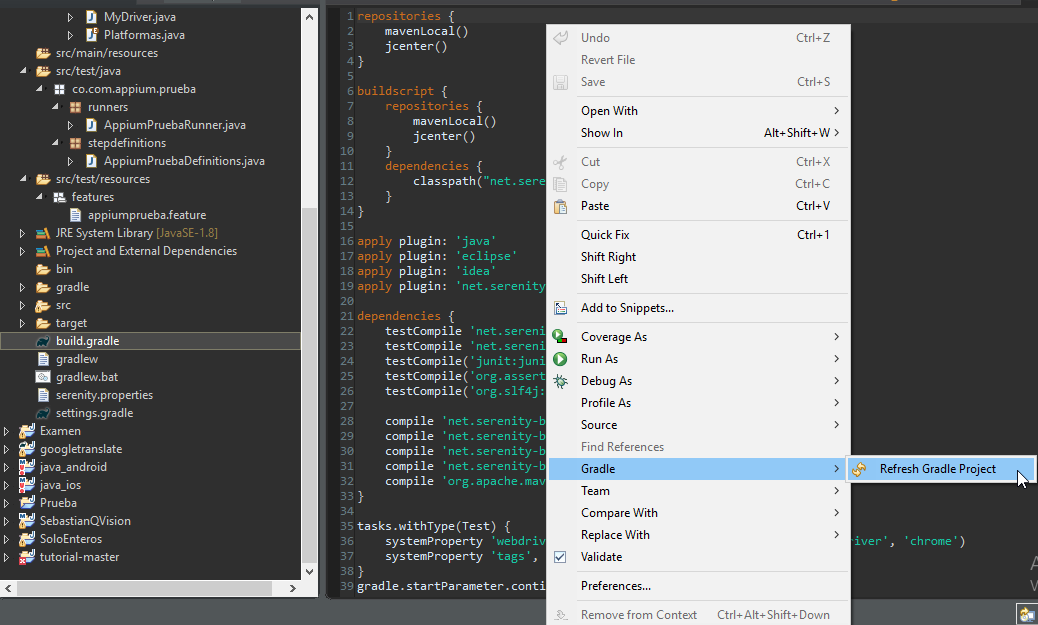

repositories {
    mavenLocal()
    jcenter()
}

buildscript {
    repositories {
        mavenLocal()
        jcenter()
    }
    dependencies {
        classpath("net.serenity-bdd:serenity-gradle-plugin:2.0.2")
    }
}

apply plugin: 'java'
apply plugin: 'eclipse'
apply plugin: 'idea'
apply plugin: 'net.serenity-bdd.aggregator'

dependencies {
    testCompile 'net.serenity-bdd:serenity-core:2.0.2'
    testCompile 'net.serenity-bdd:serenity-junit:2.0.2'
    testCompile('junit:junit:4.12')
    testCompile('org.assertj:assertj-core:3.11.1')
    testCompile('org.slf4j:slf4j-simple:1.7.25')

    compile 'net.serenity-bdd:serenity-core:2.0.2'
    compile 'net.serenity-bdd:serenity-junit:2.0.2'
    compile 'net.serenity-bdd:serenity-cucumber:1.9.8'
    compile 'net.serenity-bdd.maven.plugins:serenity-maven-plugin:1.2.5-rc.6'
    compile 'org.apache.maven.plugins:maven-surefire-plugin:2.22.1'
}

tasks.withType(Test) {
    systemProperty 'webdriver.driver', System.getProperty('webdriver.driver', 'chrome')
    systemProperty 'tags', System.getProperty('tags', '')
}
gradle.startParameter.continueOnFailure = true

1
2
3
4
5
6
7
8

Feature: Eribank sign in
  I want to join Eribank

  Scenario: Successful logIn in EriBank
    Given I want log in to the application
    When I enter the username and password
    And I click the login button
    Then I verify that the login is successful

1
2
3
4
5
6
7
8

@RunWith(CucumberWithSerenity.class)
@CucumberOptions(
		  features="src/test/resources/features/appiumprueba.feature",
		  glue = "co.com.appium.prueba.stepdefinitions",
		        snippets = SnippetType.CAMELCASE
		)
public class AppiumPruebaRunner {
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

public class AppiumPruebaDefinitions {


	@Given("^I want log in to the application$")
	public void iWantLogInToTheApplication() throws Exception {

	}

	@When("^I enter the username and password$")
	public void iEnterTheUsernameAndPassword() throws Exception {

	}

	@When("^I click the login button$")
	public void iClickTheLoginButton() throws Exception {

	}

	@Then("^I verify that the login is successful$")
	public void iVerifyThatTheButtonIsActive() throws Exception {

    }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96

public class MyDriver {

	private static final Logger logger = Logger.getLogger(MyDriver.class.getName());
	private static AppiumDriver<MobileElement> driver;
	static String envPlatform = "ANDROID";
	public static Platformas plataforma = null;

    public static AppiumDriver<MobileElement> abrirApp(){
	    	if (envPlatform.contains("ANDROID")) {
	    		plataforma = Platformas.ANDROID;
		} else if (envPlatform.contains("IOS")) {
			plataforma = Platformas.IOS;
		}
    		String url = "http://127.0.0.1:4723/wd/hub";
        DesiredCapabilities capabilities = new DesiredCapabilities();
        switch (plataforma) {
		case IOS:
			try {
                //String path = System.getProperty("user.dir")
                //path = path + "/src/test/resources/app/appPrueba.iOS.ipa"
                //capabilities.setCapability("app", path)
                capabilities.setCapability("deviceName", "iPhone 8");
                capabilities.setCapability("udid", "0202bba73adcc99fa654db813d43e6e52faa49bf");
                capabilities.setCapability("platformVersion", "12.1");
                capabilities.setCapability("platformName", "iOS");
                capabilities.setCapability("automationName", "XCUITest");
                capabilities.setCapability("bundleId", "co.com.prueba.canalesmoviles.ProbandoElMundo");
                capabilities.setCapability("noReset", false);

                /*String kobitonServerUrl = "https://estivenm:a12ce76e-b733-4d8e-881e-572b924279d8@api.kobiton.com/wd/hub";
                capabilities.setCapability("sessionName", "Automation test session");
                capabilities.setCapability("sessionDescription", "");
                capabilities.setCapability("deviceOrientation", "portrait");
                capabilities.setCapability("captureScreenshots", true);
                capabilities.setCapability("app", "kobiton-store:26510");
                capabilities.setCapability("groupId", 444);
                capabilities.setCapability("deviceGroup", "KOBITON");
                capabilities.setCapability("deviceName", "iPhone 7");
                capabilities.setCapability("platformVersion", "12.1.2");
                capabilities.setCapability("platformName", "iOS"); */

                driver = new AppiumDriver<MobileElement>(new URL(url), capabilities);
                driver.manage().timeouts().implicitlyWait(60, TimeUnit.SECONDS);
                //driver.switchTo().alert().accept();
                return driver;
            } catch (Exception e) {
                logger.log(Level.SEVERE, ExceptionMessages.EXCEPTION_NO_CREATE_DRIVER.getMensaje(), e);
                throw new MyBusinessException(ExceptionMessages.EXCEPTION_NO_CREATE_DRIVER.getMensaje(), e);
            }
		case ANDROID:
		 	try {
                capabilities.setCapability("deviceName", "emulator-5554"); //Nombre del dispositivo, en este caso del emulador
               //capabilities.setCapability("udid", "J7AXHM001253GB7"); Se debe poner el ID del dispositivo si es uno REAL
                capabilities.setCapability("platformVersion", "5.0");
                capabilities.setCapability("platformName", "Android");
                capabilities.setCapability("appPackage", "com.experitest.ExperiBank");
                capabilities.setCapability("appActivity", "com.experitest.ExperiBank.LoginActivity");
                capabilities.setCapability("noReset", true);

		 		/*String kobitonServerUrl = "https://estivenm:a12ce76e-b733-4d8e-881e-572b924279d8@api.kobiton.com/wd/hub";
		 		capabilities.setCapability("sessionName", "Automation test session");
		 		capabilities.setCapability("sessionDescription", "");
		 		capabilities.setCapability("deviceOrientation", "portrait");
		 		capabilities.setCapability("captureScreenshots", true);
		 		capabilities.setCapability("app", "kobiton-store:24713");
		 		capabilities.setCapability("groupId", 444);
		 		capabilities.setCapability("deviceGroup", "KOBITON");
		 		capabilities.setCapability("deviceName", "Moto G Plus (5th Gen)");
		 		capabilities.setCapability("platformVersion", "7.0");
		 		capabilities.setCapability("platformName", "Android");
		 		capabilities.setCapability("noReset", "false");*/

	        		driver = new AppiumDriver<MobileElement>(new URL(url), capabilities);
	        		driver.manage().timeouts().implicitlyWait(60, TimeUnit.SECONDS);
	        		return driver;
            } catch (Exception e) {
                logger.log(Level.SEVERE, ExceptionMessages.EXCEPTION_NO_CREATE_DRIVER.getMensaje(), e);
                throw new MyBusinessException(ExceptionMessages.EXCEPTION_NO_CREATE_DRIVER.getMensaje(), e);
            }
		default:
			logger.log(Level.SEVERE, ExceptionMessages.EXCEPTION_NO_SE_ENCONTRO_PLATAFORMA.getMensaje());
			break;
		}
		return null;
    }

    public static AppiumDriver<MobileElement> getDriver(){
        return driver;
    }

    public static Logger getLogger(){
        return logger;
    }


}

1
2
3
4

public enum Platformas {
	ANDROID,
    IOS
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

public enum ExceptionMessages {

	EXCEPTION_AL_BUSCAR_ELEMENTO("No se encontro el elemento"),
	EXCEPTION_AL_CERRAR_INGRESO_CLAVE("No cerro sesion en ingreso clave"),
	EXCEPTION_AL_ESPERAR("No se espero el tiempo indicado"),
	EXCEPTION_AL_HACER_SCROLL("Error al hacer el scroll"),
	EXCEPTION_AL_OCULTAR_TECLADO("Error al ocultar el teclado"),
	EXCEPTION_AL_REFRESCAR_PANTALLA("Error al refrescar la pantalla"),
	EXCEPTION_AL_SELECCIONAR_UN_MES("Error al convertir numero de mes a nombre"),
	EXCEPTION_AL_SELECCIONAR_UN_TIPO_DOCUMENTO("Error al completar el numero de documento para IOS"),
	EXCEPTION_ERRORAL_PRESIONAR_BOTON("Error al presionar un boton"),
	EXCEPTION_ERROR_LEER_ARCHIVO("Error al abrir el archivo"),
    EXCEPTION_NO_CREATE_DRIVER("Error al crear el driver"),
    EXCEPTION_NO_SE_ENCONTRO_PLATAFORMA("Error al encontar la plataforma a ejecutar");

    private final String mensaje;

    private ExceptionMessages(String mensaje) {
        this.mensaje = mensaje;
    }

    public String getMensaje() {
        return this.mensaje;
    }

}

1
2
3
4
5
6

public class MyBusinessException extends SerenityManagedException {

	public MyBusinessException(String message, Throwable testErrorException) {
        super(message, testErrorException);
    }
}

1
2
3
4
5
6
7
8

webdriver.driver = appium

appium.platformName = ANDROID
webdriver.timeouts.implicitlywait = 20000
webdriver.wait.for.timeout = 20000
serenity.take.screenshots=FOR_FAILURES
#AFTER_EACH_STEP
serenity.restart.browser.for.each = NEVER

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41

public class HomePage {

	AppiumDriver<MobileElement> driver;

	public HomePage(AppiumDriver<MobileElement> driver) {
		PageFactory.initElements(new AppiumFieldDecorator(driver), this);
		this.driver = driver;
	}


	// -------------------- Elementos Interface login ---------------------- //

	@FindBy(id="com.experitest.ExperiBank:id/usernameTextField") // Campo ingreso nombre usuario
	WebElement usernameText;

	@FindBy(id="com.experitest.ExperiBank:id/passwordTextField") // Campo ingreso contraseña usuario
	WebElement passwordText;

	@FindBy(id="com.experitest.ExperiBank:id/loginButton") // Boton Login
	WebElement buttonLogin;

	// ---------------- Elementos Interface menu principal ------------------//

	@FindBy(id="com.experitest.ExperiBank:id/makePaymentButton") // Boton Make Payment
	WebElement buttonMakePayment;

	// ------------------ METODOS -------------------- //

	public void inputDataLogin() {
		usernameText.sendKeys("company");
		passwordText.sendKeys("company");
	}

	public void clickButtonLogin() {
		buttonLogin.click();
	}

	public Boolean validateResult() {
		return buttonMakePayment.isDisplayed();
	}
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

public class AppiumHomePage {

	HomePage homePage;

	@Step
	public void openDriverAppium() {
		MyDriver.abrirApp();
		homePage = new HomePage(MyDriver.getDriver());
	}

	@Step
	public void enterTheDataAccountValid() {
		homePage.inputDataLogin();
	}

	@Step
	public void enterLogin() {
		homePage.clickButtonLogin();
	}

	@Step
	public void validationLogin() {
		boolean resultVisibleButton = homePage.validateResult();
		Assert.assertEquals(resultVisibleButton, true);
	}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

public class AppiumPruebaDefinitions {


	@Steps
	AppiumHomePage stepsAppium;


	@Given("^I want log in to the application$")
	public void iWantLogInToTheApplication() throws Exception {
	stepsAppium.openDriverAppium();
	}

	@When("^I enter the username and password$")
	public void iEnterTheUsernameAndPassword() throws Exception {
		stepsAppium.enterTheDataAccountValid();
	}

	@When("^I click the login button$")
	public void iClickTheLoginButton() throws Exception {
	    stepsAppium.enterLogin();
	}

	@Then("^I verify that the login is successful$")
	public void iVerifyThatTheButtonIsActive() throws Exception {
		stepsAppium.validationLogin();
    }
}
